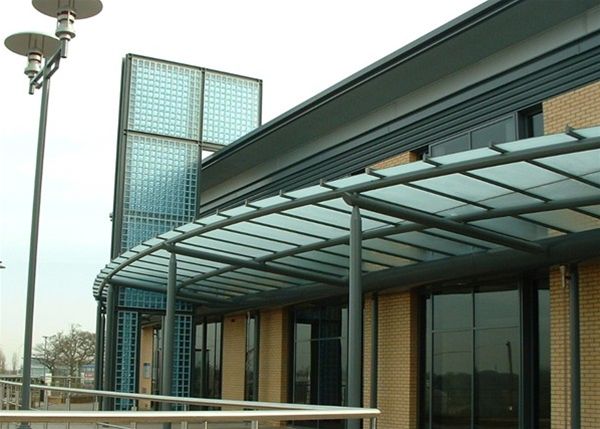

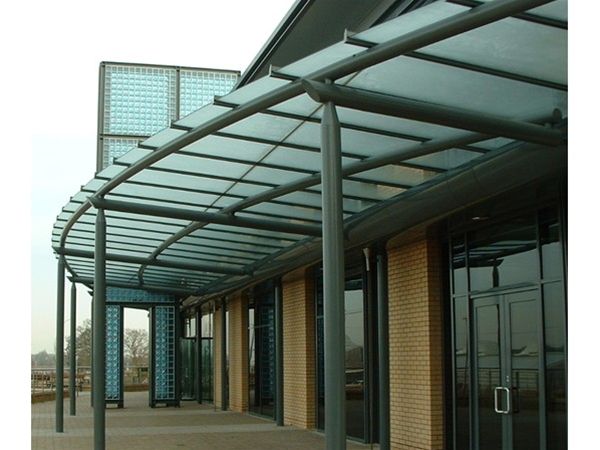

W29 Satin Glass Patent Glazed Roof Walkway Offices Blyth Valley

The walkway provided an attractive solution to covering a large area at the front of the office building. The walkway was fabricated entirely from heavy duty SHS/RHS members. Support legs are taken down to concrete foundation bases below ground level. Glazing to the roof area is by the use of satinised toughened safety glass panels fixed in an aluminium polyester powder coated patent glazing bar system and glass panels were shaped with a front curved edge. All steel work is decorated using our standard heavy duty exterior grade enamel paint system. A rear integral gutter system completed the design.
