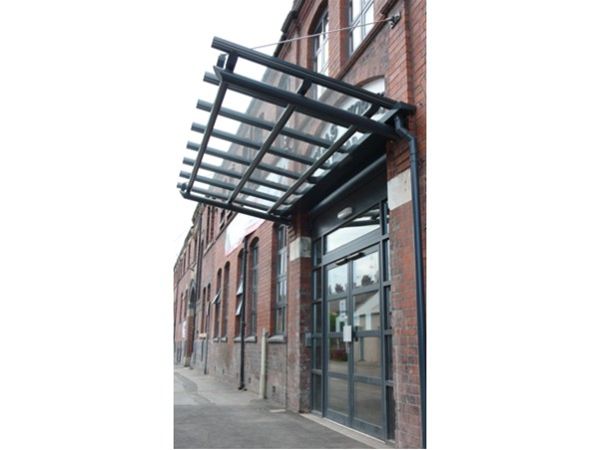

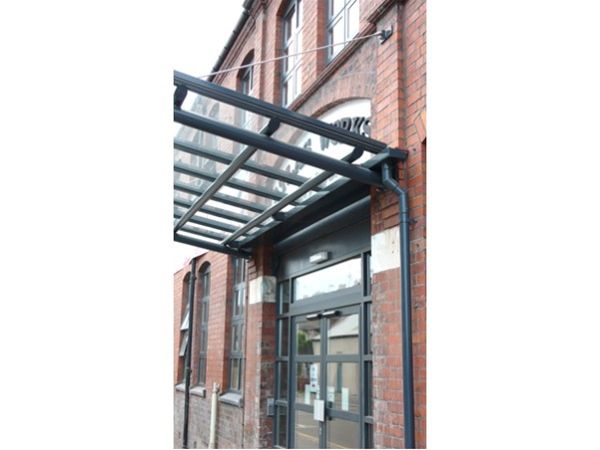

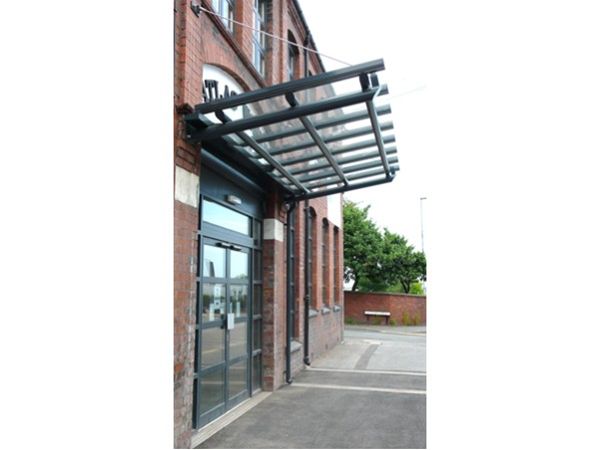

SC23 Suspended Patent Glazed Canopy Offices Stoke On Trent

A full mild steel support framework fixed back to the internal steel frame of the building and decorated using a heavy duty external grade enamel high gloss paint system. Glazing panels were clear toughened safety glass held in place using a aluminium polyester powder coated glazing bar system complete with all seals and gaskets for a watertight finish. Additional support was provided by the use of tension rods fixed to the front edge of the canopy and back to the mains structure at a higher level. An integral rear gutter channel with suitable down pipes finish the design.
