Project Description

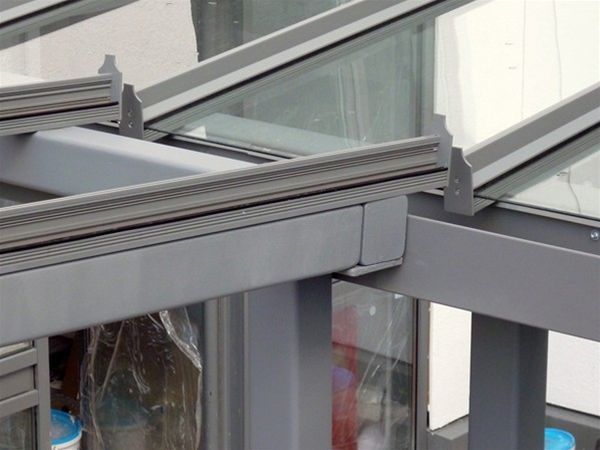

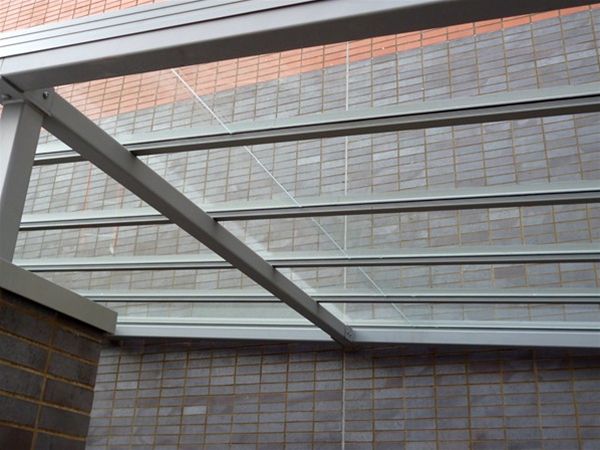

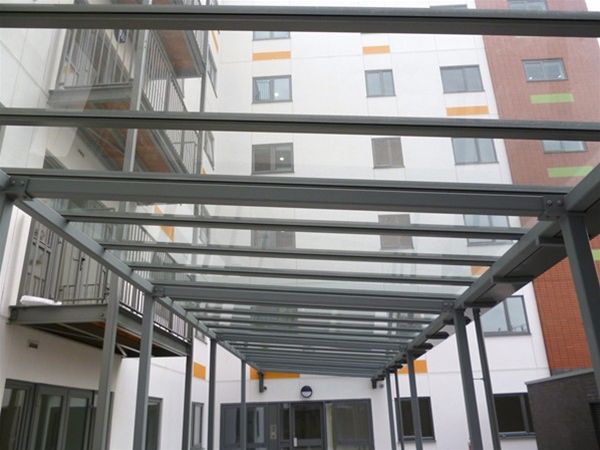

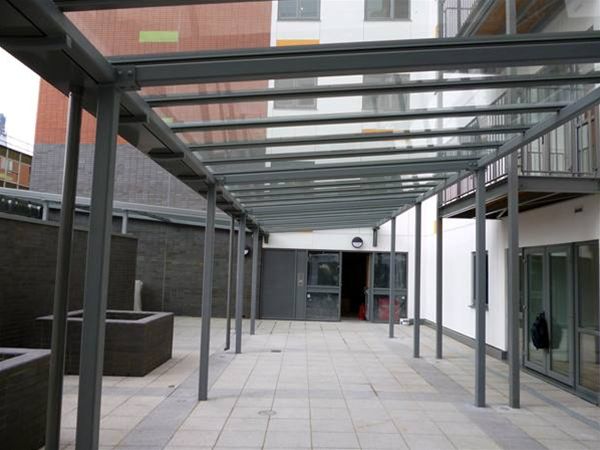

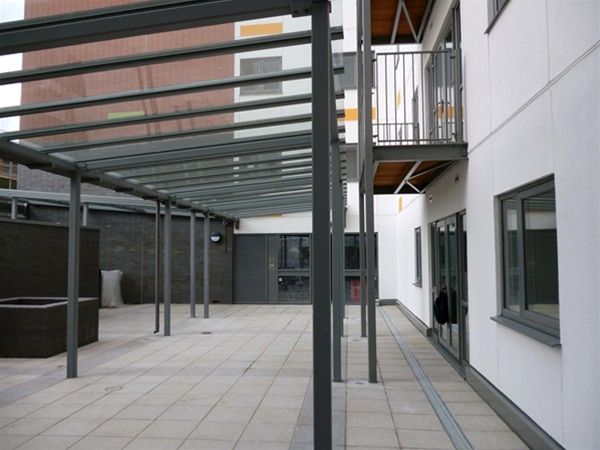

The patent glazed glass covered walkway provided an economical solution to connecting various buildings on the school campus. The walkway was fabricated entirely from heavy duty SHS/RHS members with CHS column support legs. Support legs are taken down to concrete foundation bases below ground level. Glazing to the roof area is by the use of satinised toughened safety glass panels fixed in an aluminium polyester powder coated patent glazing bar system. All steelwork is decorated using our standard heavy duty exterior grade enamel paint system. A running gutter channel and suitable down pipes to one side of the walkway completed the design and allowed the design to be used in a variety of locations around the campus.
