SC126 Suspended Glass Patent Glazed Canopy Offices Brinksworth

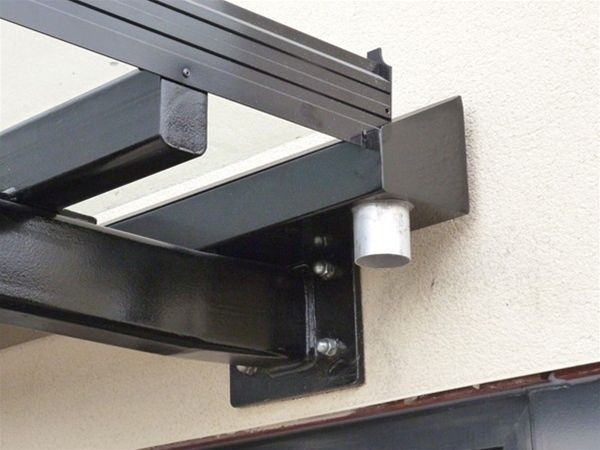

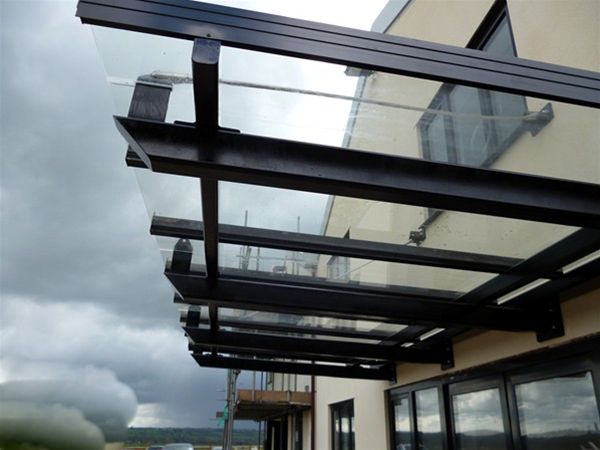

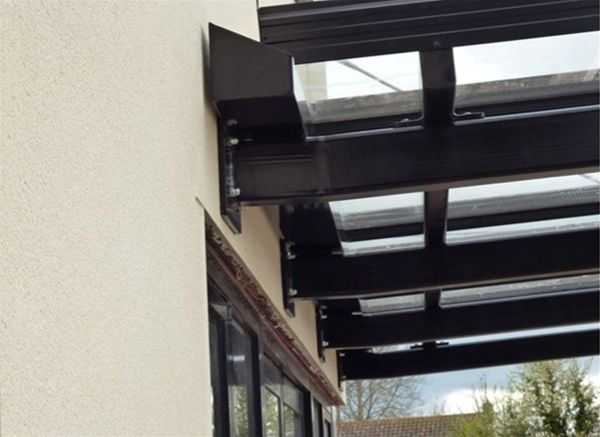

Comprising of Glass toughened safety glass panels held in a polyester powder coated aluminium patent glazing bar system fixed over a mild steel decorated sub frame fixed through stub brackets to the internal steel frame of the main structure. Extra stability was provided by the use of stainless steel tie rods fixed to the main structure at a higher level and to special raised steel brackets on the front edge of the canopy.
