Project Description

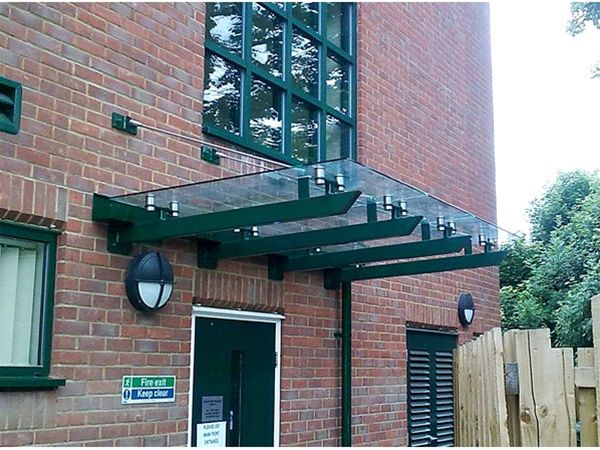

A fully decorated mild steel support framework with laser profiled projecting arms, fixed back to internal steelwork provided the basic design for this attractive individual glass canopy unit. Stainless Steel support tension rods gave extra stability to the design. All steelwork was fully decorated using our standard heavy duty exterior grade enamel paint system, which is available in any standard BS or RAL colour. Roof covering to the glass canopy unit was provided by the use of clear toughened safety glass panels fixed in a stainless steel planar type system. An Integral rear gutter system with an external down pipe completed the simple but effective glass canopy unit design.
